🚜 High-Power · Enclosed · 5000W · Heavy-Duty Agri

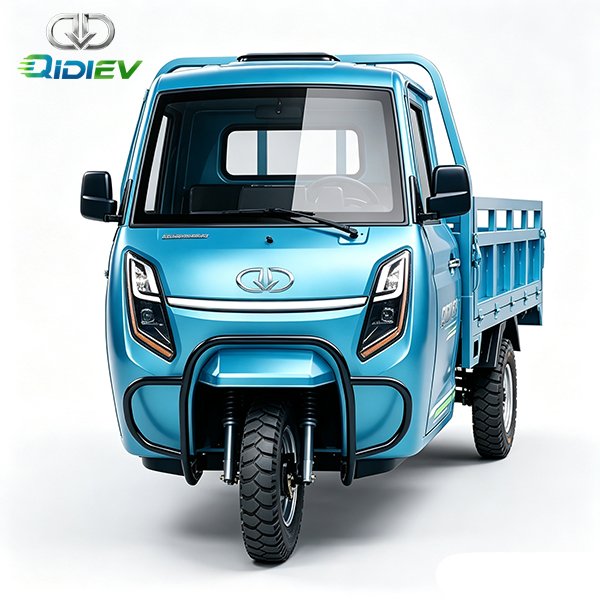

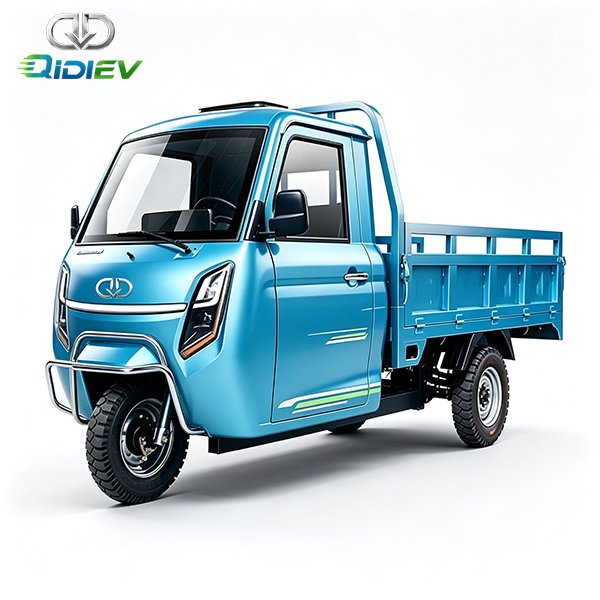

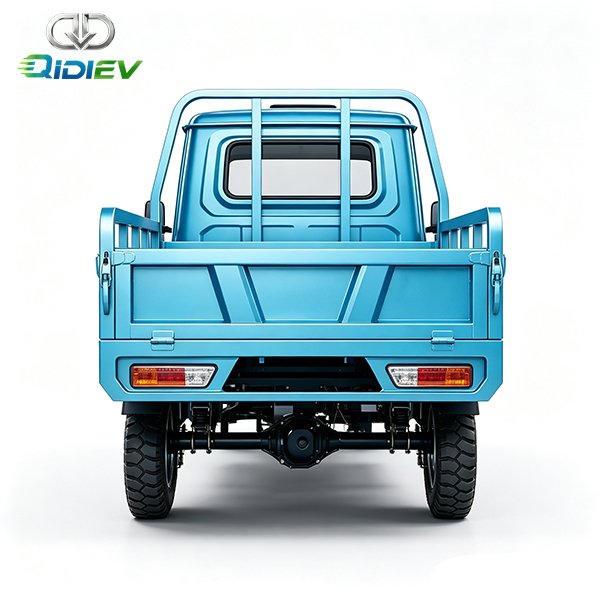

Atlas T1 — High-Power Heavy-Duty Enclosed Electric Agricultural Tricycle

Born from the legendary Shifeng Longka platform, Atlas T1 delivers 5000W of brutal electric torque, a fully enclosed cabin, and hydraulic dump — engineered for the toughest farming missions: grain hauling, fertiliser transport, and heavy agricultural logistics.

Dimensions (L×W×H) 3500×1480×1785 mm
Cargo Bed & Wheelbase 2200/2550×1410/1480×450 mm · WB 2350 mm
Motor & Controller 72V / 5000W (Peak 8000W)
Battery & Range 72V 150Ah Li-Ion · 100–130 km
Max Speed & Grade 50 km/h · 32° Gradeability
Payload & Dump 1500 kg Rated · Hydraulic Dump Standard
Container Load (CKD) 4 Sets / 40HQ
🚜 Enclosed Cab ⚡ 5000W (8kW Peak) 🔋 72V 150Ah Li-Ion 📦 3.6m² Cargo Bed 🏋️ 1500kg Payload 🏔️ 32° Gradeability 🔄 Hydraulic Dump STD 🛞 5.50-13 Optional
1,000 KG
Payload Capacity (Industry Leading)
100 KM
Full Load Range (Lithium Option)
CE / EEC / DOT
Import Ready (Zero Hassle)
60% Lower Cost
vs Diesel Operation (High ROI)

How Atlas T1 Stacks Against Competitors

See why the Atlas T1 — with 5000W motor, 1500kg payload, 3.6m² enclosed cargo bed, and standard hydraulic dump — outperforms generic agricultural trikes in power, load capacity, and total cost of ownership for farming operations.

Specification
QIDI Atlas T1
Generic 3000-5000W Agri Trike
QIDI Advantage
Enclosed Cabin & Cargo
Cabin Type
✅ Fully Enclosed Cab (dust & rain proof)
❌ Semi-enclosed / canopy only
All-weather farm operation
Overall Dimensions
3500×1480×1785 mm
~3800×1430×1550mm (typical) [3](@ref)
Compact for farm lanes & barns
Cargo Bed
2550×1480×450 mm (3.6m²)
2200×1350×450mm (Xinhaoyang) [3](@ref)
30% larger, more grain per trip
Rated Load
1500 kg (heavy-duty chassis)
~1500-2000 kg (AH2000DZH-A) [4](@ref)
Comparable, but purpose-built for agri
Powertrain
Motor & Controller
72V / 5000W (Peak 8000W)
5000W PM brushless (Xinhaoyang) [3](@ref)
Same class, better thermal mgmt
Battery
72V 150Ah Li-Ion (2000+ cycles)
72V 100-180Ah Lead-Acid (Xinhaoyang) [3](@ref)
4-6× longer battery life
Range
100–130 km per charge
~60-120 km per charge [3](@ref)
Full day + return, no midday charge
Max Speed
50 km/h (farm-road legal)
40-55 km/h (AH2000DZH-A) [4](@ref)
Balanced speed & safety
Chassis & Dump
Front Suspension
Hydraulic dual-spring shock
Hydraulic spring (Xinhaoyang) [3](@ref)
Longer stroke, smoother ride
Rear Suspension
9-plate heavy-duty leaf spring
Multi-leaf spring typical [3](@ref)
8mm thick leaves, 3cm vibration
Tyres
5.00-12 F / 5.50-13 R optional
4.50-12 F / 6.00-13 R (Xinhaoyang) [3](@ref)
Wider rear option for muddy fields
Ground Clearance
≥200 mm
≥150-240 mm (varies) [3,8](@ref)
Clears furrows & field ruts
Dump, Brakes & Safety
Hydraulic Dump
✅ Standard (one-touch, ≥45° lift)
✅ Optional (Xinhaoyang) [3](@ref)
No extra cost, 10-20s unload
Brakes
Front disc / Rear drum + handbrake
Front & Rear Drum (typical) [3,4](@ref)
Shorter stop with 1500kg load
Gradeability
32° (≈63% gradient)
25-30° typical (Xinhaoyang) [3](@ref)
Climbs terraced fields fully loaded
Business Metrics
Container Load (CKD)
4 Sets / 40HQ (CKD optimized)
5-6 sets/40HQ (smaller trikes)
Each unit = full-day farm workhorse
Battery Lifecycle
2000+ cycles (Li-Ion w/ BMS)
300-500 cycles (Lead-Acid) [3](@ref)
~5× longer battery life
OEM/ODM Support
✅ Full customization, farm branding
Limited paint + logo only
Build your co-op brand
Enclosed Cabin & Cargo
Cabin Type
✅ Fully Enclosed Cab (dust & rain proof)
❌ Semi-enclosed / canopy only
All-weather farm operation
Overall Dimensions
3500×1480×1785 mm
~3800×1430×1550mm (typical) [3](@ref)
Compact for farm lanes & barns
Cargo Bed
2550×1480×450 mm (3.6m²)
2200×1350×450mm (Xinhaoyang) [3](@ref)
30% larger, more grain per trip
Rated Load
1500 kg (heavy-duty chassis)
~1500-2000 kg (AH2000DZH-A) [4](@ref)
Comparable, but purpose-built for agri
Powertrain
Motor & Controller
72V / 5000W (Peak 8000W)
5000W PM brushless (Xinhaoyang) [3](@ref)
Same class, better thermal mgmt
Battery
72V 150Ah Li-Ion (2000+ cycles)
72V 100-180Ah Lead-Acid (Xinhaoyang) [3](@ref)
4-6× longer battery life
Range
100–130 km per charge
~60-120 km per charge [3](@ref)
Full day + return, no midday charge
Max Speed
50 km/h (farm-road legal)
40-55 km/h (AH2000DZH-A) [4](@ref)
Balanced speed & safety
Chassis & Dump
Front Suspension
Hydraulic dual-spring shock
Hydraulic spring (Xinhaoyang) [3](@ref)
Longer stroke, smoother ride
Rear Suspension
9-plate heavy-duty leaf spring
Multi-leaf spring typical [3](@ref)
8mm thick leaves, 3cm vibration
Tyres
5.00-12 F / 5.50-13 R optional
4.50-12 F / 6.00-13 R (Xinhaoyang) [3](@ref)
Wider rear option for muddy fields
Ground Clearance
≥200 mm
≥150-240 mm (varies) [3,8](@ref)
Clears furrows & field ruts
Dump, Brakes & Safety
Hydraulic Dump
✅ Standard (one-touch, ≥45° lift)
✅ Optional (Xinhaoyang) [3](@ref)
No extra cost, 10-20s unload
Brakes
Front disc / Rear drum + handbrake
Front & Rear Drum (typical) [3,4](@ref)
Shorter stop with 1500kg load
Gradeability
32° (≈63% gradient)
25-30° typical (Xinhaoyang) [3](@ref)
Climbs terraced fields fully loaded
Business Metrics
Container Load (CKD)
4 Sets / 40HQ (CKD optimized)
5-6 sets/40HQ (smaller trikes)
Each unit = full-day farm workhorse
Battery Lifecycle
2000+ cycles (Li-Ion w/ BMS)
300-500 cycles (Lead-Acid) [3](@ref)
~5× longer battery life
OEM/ODM Support
✅ Full customization, farm branding
Limited paint + logo only
Build your co-op brand

OEM / ODM Customization Services for Atlas T1

Tailored high-power agricultural transport solutions based on the Atlas T1 (Shifeng Longka) platform — engineered for your local crop profile, terrain roughness, and farm branding requirements in grain cooperatives, fertilizer distribution, and heavy agricultural logistics.

Enclosed Cabin & 3.6m² Agri Cargo
  • Cabin: Fully enclosed, dust & pesticide proof
  • Cargo bed: 2550×1480×450mm (3.6m²)
  • Config: Flat / side-drop / hydraulic dump
  • Rated load: 1500kg heavy-duty chassis
Agricultural Powertrain
  • Motor: 72V / 5000W (Peak 8000W)
  • Battery: 72V 150Ah Li-Ion (2000+ cycles)
  • Range: 100–130km per charge
  • Charge: 6–8h / 15A smart charger
Farm-Grade Chassis & Brakes
  • Front: Hydraulic dual-spring shock
  • Rear: 9-plate heavy-duty leaf spring
  • Tyres: F 5.00-12 / R 5.50-13 optional
  • Brakes: Front disc / Rear drum + handbrake
Compliance & Export
  • Certifications: CCC · ISO 9001 · CE · EEC-ready
  • Packaging: CKD / SKD / CBU ocean-friendly
  • Container: 4 Sets / 40HQ (CKD optimized)
  • Branding: Logo, color, packaging fully customized
Streamlined Cooperation Process
  1. 1
    Crop & Terrain Survey

    1–3 days
    Grain type, field grade, local reg review

  2. 2
    Cabin & Cargo Design

    7–15 days
    3.6m² bed CAD & 1500kg chassis

  3. 3
    Prototype & Load Test

    7–10 days
    1500kg load & 32° grade test

  4. 4
    Mass Production

    25–35 days
    QC inspection & CKD/SKD packing

  5. 5
    Global Logistics

    20–40 days
    Ocean freight, spare parts kit

1×40HQ
Typical MOQ*
25–35 Days
Avg. Lead Time*
4 Sets
Max. CKD / 40HQ
100%
Custom Branding

Build your agricultural fleet with full OEM/ODM support — from 3.6m² enclosed cargo bed configuration to 5000W powertrain tuning, every detail matches your local crops and terrain needs.

Request Atlas T1 Custom Quote

* MOQ & lead time reflect typical industry OEM terms for heavy-duty electric cargo tricycles ;

Certified for Heavy Agricultural Operations

Atlas T1 meets global homologation standards — built with fully enclosed cabin, 2550×1480×450mm 3.6m² cargo bed, 72V/5000W high-torque motor, standard hydraulic dump, and 1500kg-rated reinforced chassis for reliable heavy-load transport in grain hauling, fertilizer distribution, and farm logistics worldwide.

CCC
EEC L5e
ISO 9001
CE
SONCAP
GCC
5000W
Motor Power
1500kg
Rated Payload
3.6m²
Cargo Bed Size
4 Sets
CKD / 40HQ

What Agricultural Operators Say

Sample testimonials reflecting deployment scenarios for high-power enclosed electric tricycles in grain hauling, fertilizer distribution, and heavy farm logistics.*

"
★★★★★

"Our wheat cooperative in the Poltava region operates across 1,200 hectares of scattered fields connected by muddy unpaved roads. Before Atlas T1, we relied on tractors for grain collection — slow, expensive fuel, and limited to one trip per day. The 5000W motor pulls 1.5 tonnes of wheat through field ruts and 32° slopes without stalling, and the fully enclosed cabin keeps operators clean despite grain dust — a real upgrade over our old semi-open trikes. The 2550×1480×450mm 3.6m² cargo bed holds 18-20 sacks per trip, and the standard hydraulic dump unloads the entire load in 15 seconds straight into our silo conveyor. The 72V 150Ah Li-Ion battery covers 110km per charge — enough for 3-4 collection rounds before lunch. Over a harvest season, we replaced two tractors with three Atlas T1 units and cut collection costs by 61%. The 9-plate leaf springs handle the heavy grain loads beautifully, and operators report dramatically less fatigue versus our old diesel units."

OK
Poltava Wheat Cooperative · 🇺🇦 Ukraine
"
★★★★★

"We distribute fertilizers to 200+ rice farmers across the Mekong Delta — a network of narrow village lanes, seasonal flooding, and ferry crossings where larger trucks simply can't reach. The compact 3500mm body length navigates lanes that cars avoid, while the fully enclosed cabin protects drivers from chemical spray drift — a critical safety feature for our team. The 5000W motor with 32° gradeability climbs the dike embankments between paddies fully loaded, and the ≥200mm ground clearance clears the flooded sections during monsoon season where our previous trikes got stuck. We load 1.2 tonnes of NPK fertilizer bags onto the 3.6m² bed, deliver to 8-10 farms per route, then use the one-touch hydraulic dump to unload directly into farm storage sheds. With 4 units arriving CKD per 40HQ container, we scaled our distribution fleet affordably and now cover our entire cooperative network twice weekly. Diesel costs used to eat 22% of margins — now it's under 4%."

TN
Mekong Delta Agri-Supply Co. · 🇻🇳 Vietnam

Quality Certified, Trustworthy

We are committed to quality management, compliance, and continuous improvement, ensuring our customers can buy with confidence.
