Land Cruiser G1-Pro

Reinforced Front Windshield Electric Heavy-Duty Tricycle

Cargo Size 1800×1300×500 mm
Controller (ECU) 1800W / 72V Smart
Brake System Front Disc / Rear Drum
Tyre & Rim (F/R) F/400-12, R/450-12 Steel
Front Suspension φ43 Spring Shock Absorber
Battery 60V/72V 45/58Ah
CKD Loading (40HQ) 40HQ Container
🔋 72V System 🛡️ Reinforced Windshield ⚙️ 1800W Motor 🏗️ Heavy-Duty Frame
1,000 KG
Payload Capacity (Industry Leading)
100 KM
Full Load Range (Lithium Option)
CE / EEC / DOT
Import Ready (Zero Hassle)
60% Lower Cost
vs Diesel Operation (High ROI)

The G1-Pro Competitive Edge

Land Cruiser G1-Pro vs. Generic Competitor — Full Specification Breakdown

Specification
QIDI G1-Pro
Generic Competitor
Why It Matters
▎ Frame & Structure
Frame Thickness
3.5 mm Steel
2.0 mm Steel
75% stronger, zero deformation under max load
Windshield
Reinforced Glass
None / Plastic Film
All-weather protection for driver
Cargo Box Size (L×W×H)
1800×1300×500 mm
1500×1000×400 mm
30% more cargo volume per trip
Cargo Box Material
2.5mm Reinforced Plate
1.2mm Thin Iron
Anti-deformation, 3× service life
Wheelbase
2100 mm
1750 mm
Superior stability with heavy loads
▎ Powertrain & Electronics
Motor Power
1800W Brushless DC
1000W Brushed
80% more torque for steep hills
Controller (ECU)
1800W / 72V Smart
1000W / 48V Basic
Smarter power, less heat, longer life
Voltage Options
60V / 72V Configurable
48V Only
Higher voltage = more speed & torque
Battery Options
72V 58Ah Lead-Acid / LiFePO₄
48V 45Ah Lead-Acid
30% longer range, LiFePO₄ optional
Range (Full Load)
90 – 120 KM
40 – 50 KM
2.5× daily delivery radius
▎ Braking & Safety
Front Brake
Hydraulic Disc
Mechanical Drum
Shorter stopping distance, safer
Rear Brake
Mechanical Drum (Heavy-Duty)
Mechanical Drum (Standard)
Bigger drum, better heat dissipation
Parking Brake
Yes (Hand Lever)
No / Optional
Secure hill parking, prevents rollaway
▎ Suspension & Wheels
Front Suspension
φ43 Spring Shock Absorber
φ32 Basic Shock
Stronger forks, handles rough roads
Rear Suspension
Multi-Leaf Spring (5 pcs)
Single Leaf / Rigid
Smooth ride even at full payload
Front Tyre & Rim
400-12 Steel Rim
350-10 Plastic Rim
Stronger rim, no cracks under load
Rear Tyre & Rim
450-12 Steel Rim
350-10 Plastic Rim
Wider rear tyre, better traction
▎ Load Capacity & Compliance
Max Payload
1,200 KG
500 – 600 KG
2× cargo per trip, fewer runs
Max Speed
40 – 45 KM/H
25 – 30 KM/H
Faster delivery, more orders/day
Certification
CE / EEC / DOT Ready
None / Self-Declared
Legal import to global markets
Warranty Period
2 Years
6 – 12 Months
Lower long-term cost & risk
CKD Loading (40HQ)
50 – 60 PCS
40 – 50 PCS
Lower sea freight per unit
Frame & Structure
Frame Thickness
QIDI: 3.5 mm Steel
Competitor: 2.0 mm Steel
✓ 75% stronger, zero deformation
Windshield
QIDI: Reinforced Glass
Competitor: None / Plastic Film
✓ All-weather driver protection
Cargo Box Size
QIDI: 1800×1300×500 mm
Competitor: 1500×1000×400 mm
✓ 30% more cargo volume
Cargo Box Material
QIDI: 2.5mm Reinforced Plate
Competitor: 1.2mm Thin Iron
✓ Anti-deformation, 3× life
Wheelbase
QIDI: 2100 mm
Competitor: 1750 mm
✓ Superior stability
Powertrain & Electronics
Motor Power
QIDI: 1800W Brushless DC
Competitor: 1000W Brushed
✓ 80% more torque for hills
Controller (ECU)
QIDI: 1800W / 72V Smart
Competitor: 1000W / 48V Basic
✓ Smarter power, less heat
Voltage Options
QIDI: 60V / 72V Configurable
Competitor: 48V Only
✓ Higher voltage = more power
Battery Options
QIDI: 72V 58Ah / LiFePO₄
Competitor: 48V 45Ah Lead-Acid
✓ 30% longer range
Range (Full Load)
QIDI: 90 – 120 KM
Competitor: 40 – 50 KM
✓ 2.5× daily delivery radius
Braking & Safety
Front Brake
QIDI: Hydraulic Disc
Competitor: Mechanical Drum
✓ Shorter stopping distance
Rear Brake
QIDI: Heavy-Duty Drum
Competitor: Standard Drum
✓ Better heat dissipation
Parking Brake
QIDI: Yes (Hand Lever)
Competitor: No / Optional
✓ Secure hill parking
Suspension & Wheels
Front Suspension
QIDI: φ43 Spring Shock
Competitor: φ32 Basic Shock
✓ Stronger forks, rough road ready
Rear Suspension
QIDI: Multi-Leaf Spring (5 pcs)
Competitor: Single Leaf / Rigid
✓ Smooth at full payload
Front Tyre & Rim
QIDI: 400-12 Steel Rim
Competitor: 350-10 Plastic
✓ Stronger rim, no cracks
Rear Tyre & Rim
QIDI: 450-12 Steel Rim
Competitor: 350-10 Plastic
✓ Wider tyre, better traction
Load Capacity & Compliance
Max Payload
QIDI: 1,200 KG
Competitor: 500 – 600 KG
✓ 2× cargo per trip
Max Speed
QIDI: 40 – 45 KM/H
Competitor: 25 – 30 KM/H
✓ Faster delivery
Certification
QIDI: CE / EEC / DOT Ready
Competitor: None / Self-Declared
✓ Legal import worldwide
Warranty Period
QIDI: 2 Years
Competitor: 6 – 12 Months
✓ Lower long-term cost
CKD Loading (40HQ)
QIDI: 50 – 60 PCS
Competitor: 40 – 50 PCS
✓ Lower sea freight/unit

OEM / ODM Customization Services

Tailored heavy-duty solutions based on the G1-Pro platform — engineered for your local terrain and regulations.

Body & Windshield
  • Reinforced glass thickness (5mm-8mm)
  • Windshield wiper & washer system
  • Enclosed cabin / Rain curtain options
  • Cargo box extension (up to 2.2m)
Heavy-Duty Powertrain
  • Motor upgrade: 1800W–2200W options
  • Controller: 72V high-current MOSFET
  • Battery: 72V 58Ah / LiFePO₄ upgrade
  • Crawler gear for steep slopes (>25°)
Chassis & Suspension
  • Frame thickness: 3.5mm steel reinforcement
  • Rear axle: Heavy-duty differential
  • Front fork: φ43 hydraulic suspension
  • Tire upgrade: 450-12 / 500-12 options
Compliance & Smart Tech
  • EEC L2e/L5e homologation support
  • DOT / GCC / SONCAP certifications
  • IoT GPS tracking & fleet management
  • Anti-theft immobilizer system
Streamlined Cooperation Process
  1. 1
    Requirement Analysis

    1–2 days
    Terrain & Load analysis

  2. 2
    Structural Design

    5–7 days
    CAD drawings & 3D rendering

  3. 3
    Prototype Testing

    15–20 days
    Crash & Load endurance tests

  4. 4
    Mass Production

    25–35 days
    QC inspection & assembly

  5. 5
    Global Logistics

    15–45 days
    CKD/SKD shipping

5 Units
MOQ for Prototypes
35 Days
Avg. Lead Time (G1-Pro)
100%
Custom Branding
24/7
Engineering Support

The G1-Pro platform is trusted by 50+ heavy-duty fleet operators in extreme climates (-15°C to 50°C). Let's build your market leader together.

Request G1-Pro Custom Quote

Globally Certified & Field-Tested

Every G1-Pro is engineered to pass homologation in your target market — from EU L5e to GCC standards.

EEC L5e
CE Mark
DOT Ready
ISO 9001
GCC
SONCAP
-15°C ~ 50°C
Operating Range
1,200 KG
Max Payload
3.5 mm
Frame Thickness
92%
Repeat Order Rate

What Our Heavy-Duty Partners Say

Real feedback from fleet operators running G1-Pro in extreme conditions.

"
★★★★★

"The reinforced windshield is a game-changer for our Munich winter routes. Drivers stay warm and focused at -10°C. The 72V system powers through snowy hills with 800KG of refrigerated cargo — no range anxiety."

TW
Bavaria Cold Chain Logistics · 🇩🇪 Germany
"
★★★★★

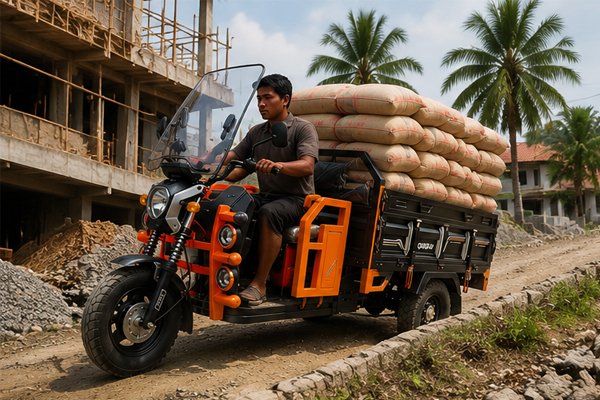

"We tested 6 brands before choosing G1-Pro. None could climb the 30° access ramps to our 12th-floor construction site fully loaded. The 1800W motor + crawler gear does it with 1000KG of cement bags. Zero breakdowns in 8 months."

BS
Jakarta MegaBuild Contractors · 🇮🇩 Indonesia
"
★★★★★

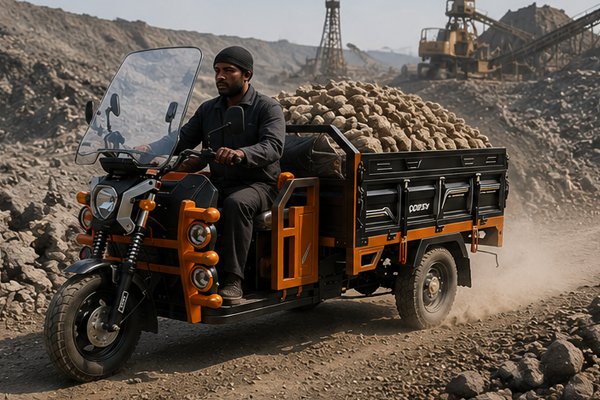

"Our mine roads are pure rock and dust. Three other brands broke within 3 months — bent frames, snapped leaf springs. G1-Pro's 3.5mm frame and 5-leaf suspension just keeps going. 18 months, zero structural failures."

JO
Mwanza Mining Supplies Ltd. · 🇹🇿 Tanzania
"
★★★★★

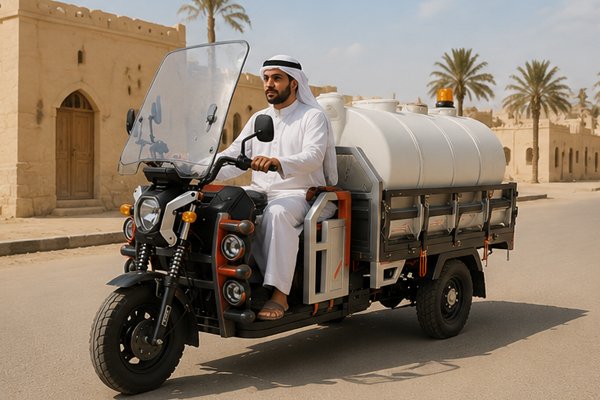

"Dubai summer hits 50°C and our old fleet's batteries died every 3 hours. G1-Pro's 72V system with thermal management runs 8 hours straight. The windshield with sun visor dropped cabin temp by 10°C. Drivers actually thanked us."

AK
Dubai Desert Logistics FZE · 🇦🇪 UAE
"
★★★★★

"Salt water destroyed our previous tricycles in 6 months — rust everywhere, electrical shorts. G1-Pro's IP67 motor and galvanized frame handled 18 months of pier-to-market runs with zero corrosion issues. 1200KG means fewer trips."

PS
Phuket Seafood Distributors · 🇹🇭 Thailand
"
★★★★★

"We operate 40 units for Riyadh municipality waste collection. The heavy-duty drum brakes on G1-Pro last 3× longer than the disc brakes on our old fleet. EEC certification made import paperwork painless. Already ordering 30 more."

FA
Riyadh Municipal Services · 🇸🇦 Saudi Arabia

Quality Certified, Trustworthy

We are committed to quality management, compliance, and continuous improvement, ensuring our customers can buy with confidence.
